Parameter
Model No | FCOB-378 | Color Temperature | 2700K | 3000K | 4000K | 6000K |
Voltage | DC-24V | IP Rate | IP20 | |||
Power | 4W/M | PCB Color | White | |||
LED Qty./M | 378LED/M | Net Weight | IP20 / 60g/Roll | |||
PCB Width | 3mm | Cut Length | 24V (55.5mm) | |||
CRI | Ra>90 R9>60 | Packing | 5m/Roll | |||
LM/M | 400-600LM/M | Beam Angle | 180° |
Characteristics
(1) Adopt brand LED chip,high brightness,low light decay,lifespan more than 25000 hours;
(2)All of materials are accord with RoHS standards;

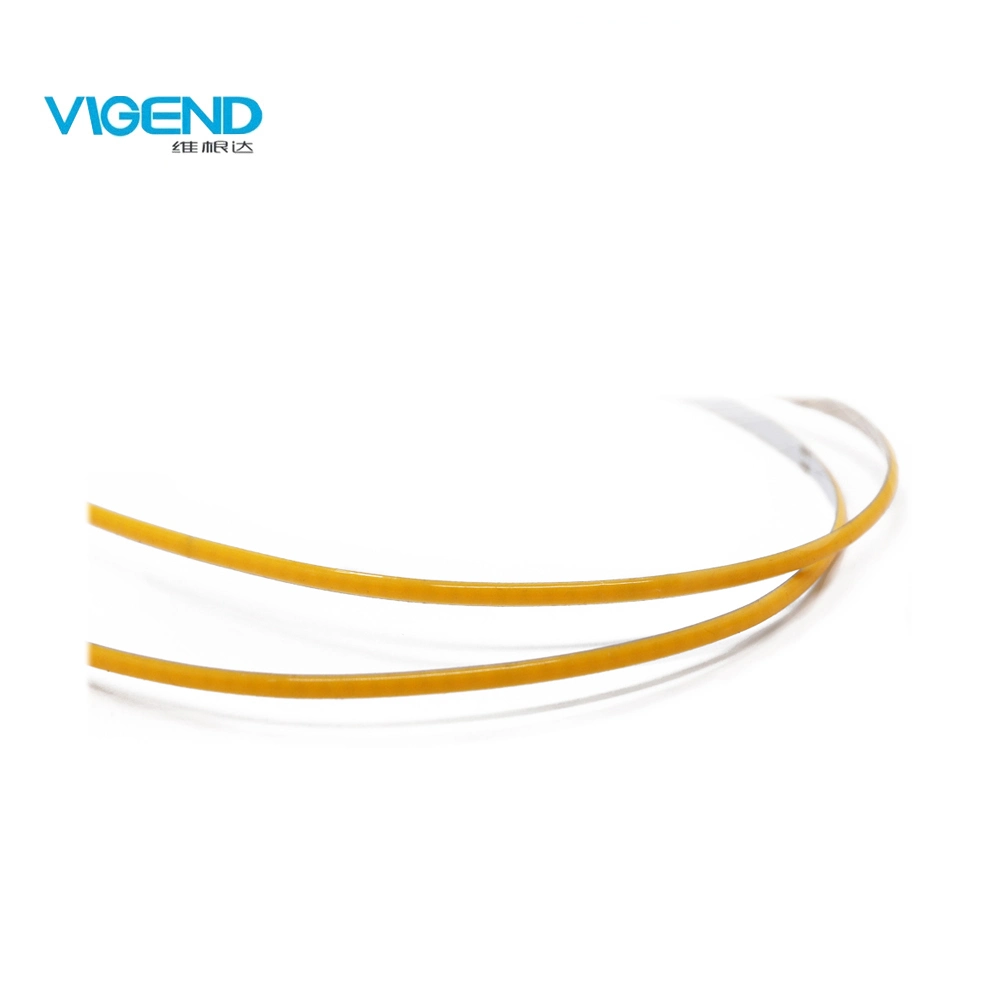

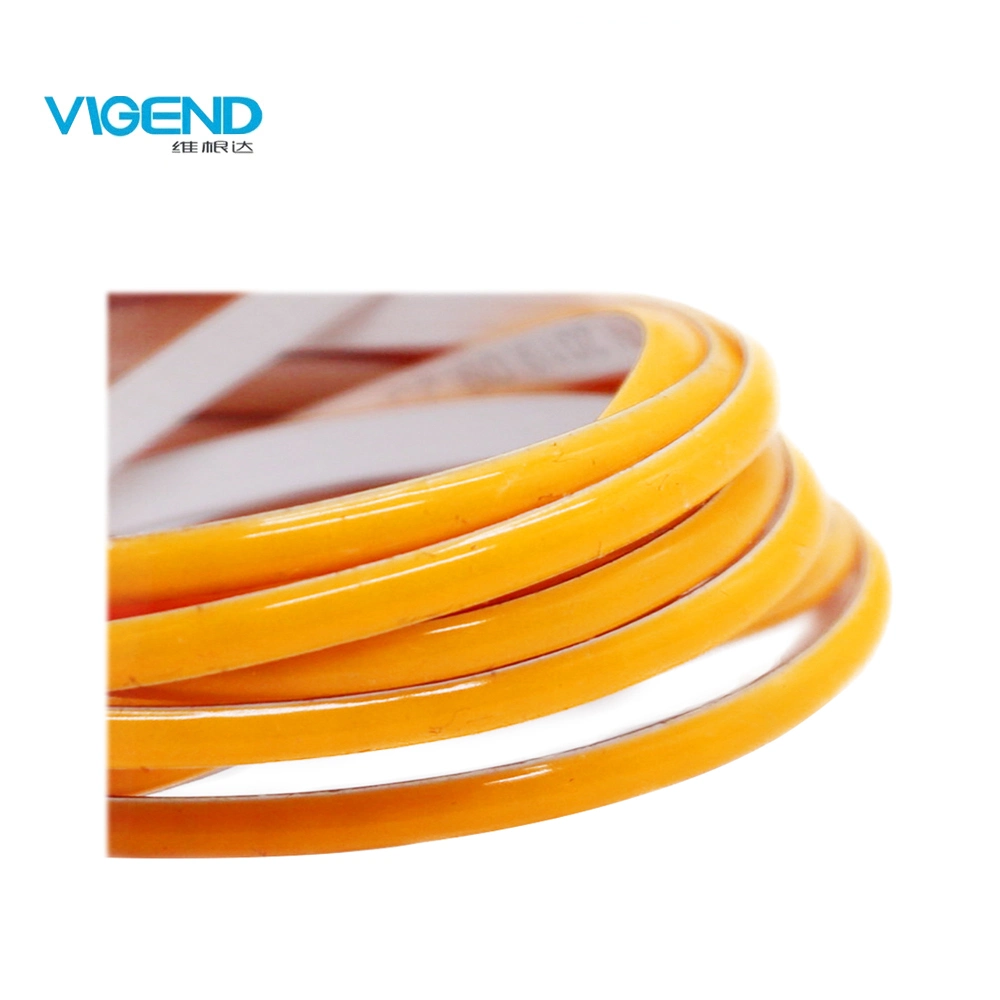

(3) Easy to install and preserve;can be bent freely; with 3M adhesive tape on the backside;
(4) High color efficiency, uniform illumination;
(5) Beam angle 180°; .
Dimension

Installation

(1) Pay attention to handling with care;
(2) Don't install the product in corrosion, flammable and explosive places;
(3) It is strictly prohibited to use any acidic or alkaline adhesives to fix the product. Neutral adhesives are required;
(4) In order to avoid the danger of electric shock, please cut off the power supply during process of installation, debugging and moving;
(5). Ensure correct and reliable connection of all joints;
(6) The product need anti-corrosion environment, such as, avoiding damp, water drop or other adverse elements.
(7)The LED strip and accessories can't be squeezed or folded;
(8) PCB conductive parts can't be damaged when installation;
(9) Installation must conform to electrical safety standard. The LED strip can only be installed by
Professionals;
(10) Ensure power supply transform operating load with transformer;
(11) When install on metal or conductor surface, insulation protection need to be provided to the contact area;
(12) Observe positive and negative polarity, ensure correct connection to avoid damaging LED strip;
(13) When installation, please prevent static electricity;
(14) If you have any questions about this product, please consult our salesman.
Applications
